How to create a prototype with AI

How to create a prototype with AI

Use Create prototype with AI to quickly build an interactive flow from selected screens. Visily automatically connects the screens with interaction links, helping you visualize the user journey faster.

Before you start

Make sure your board has at least 2 screens you want to connect.

How to create a prototype with AI

  1. Open the board that contains the screens you want to prototype.

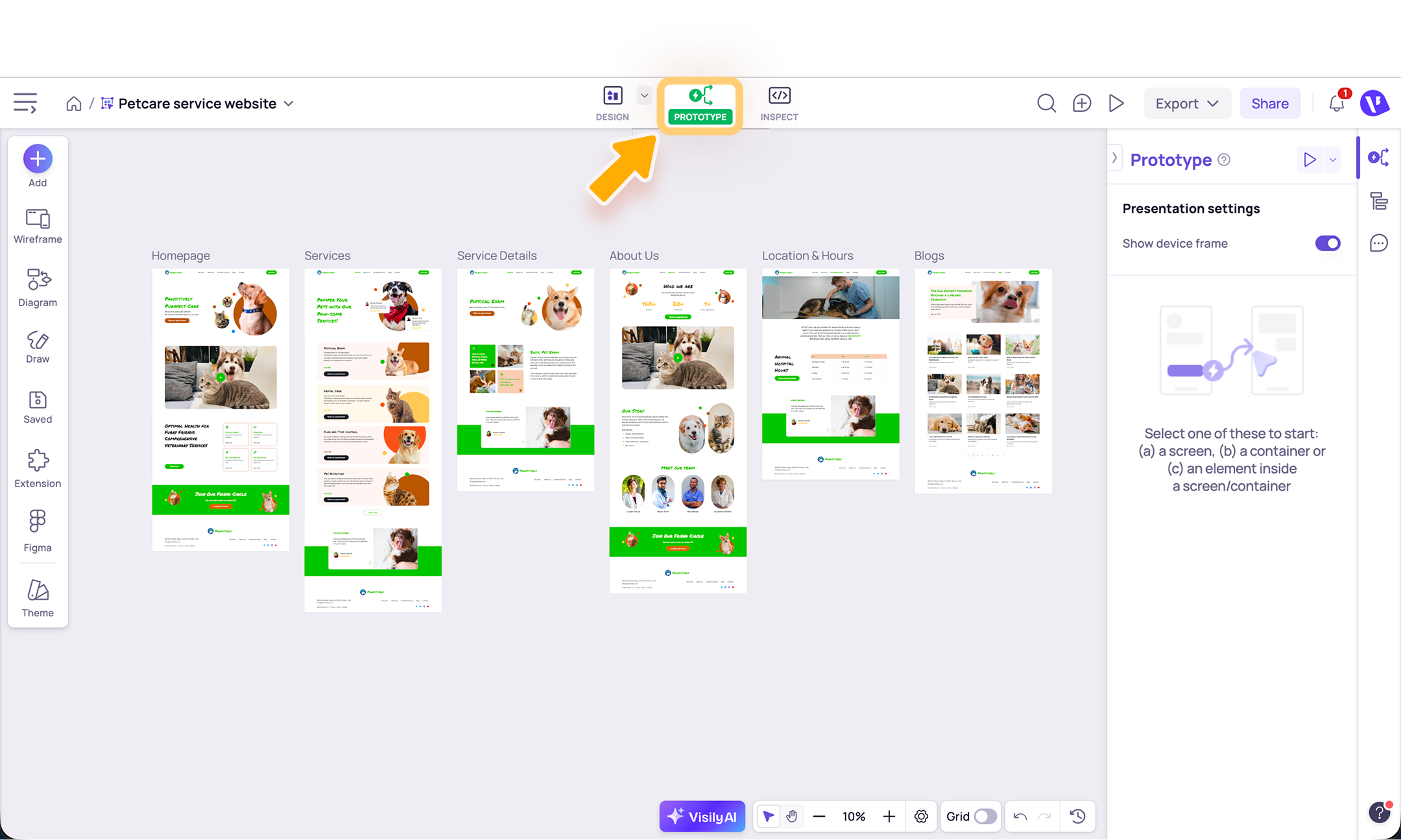

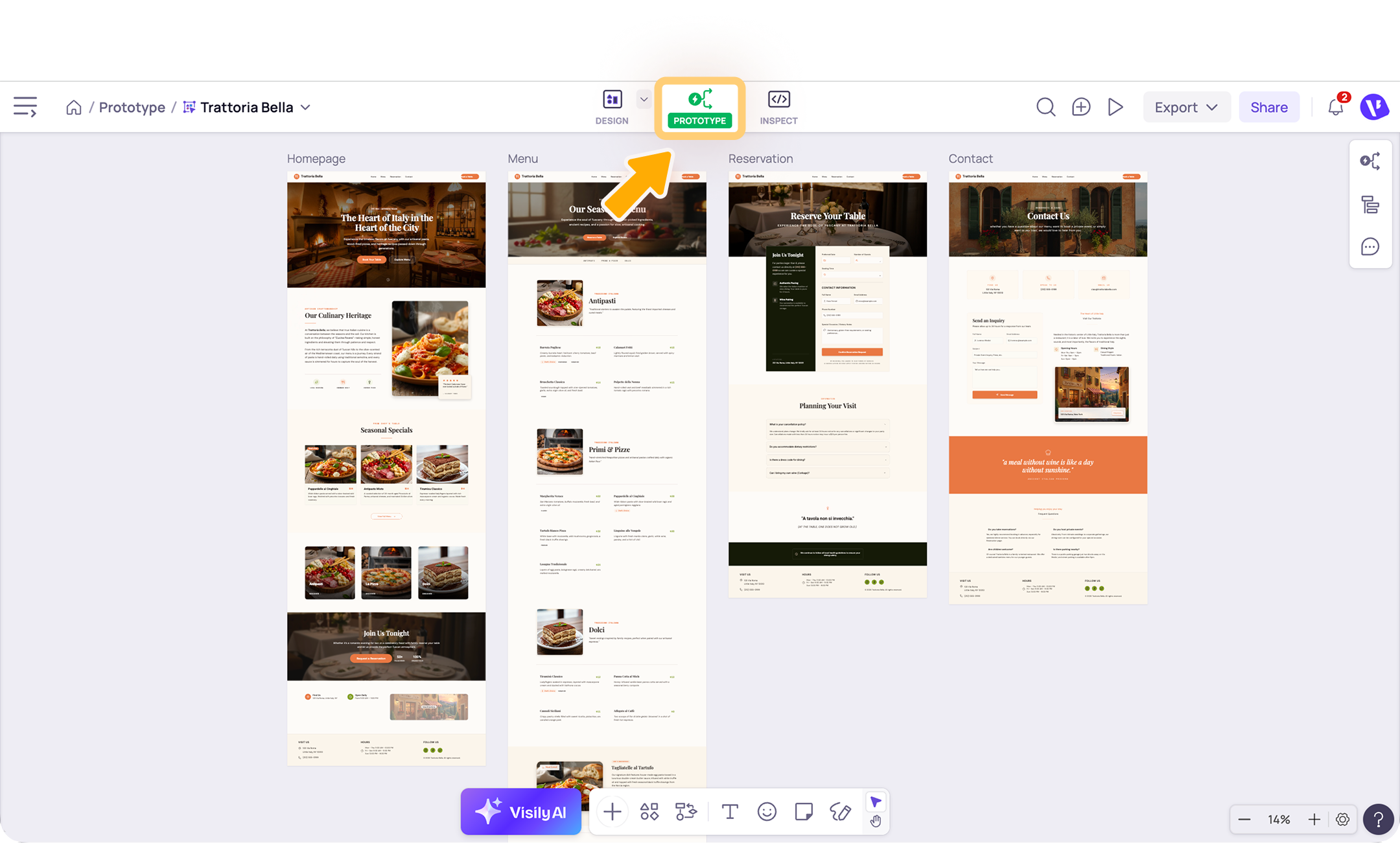

  2. Switch to Prototype mode from the top bar.


  3. Select at least 2 screens you want to connect.

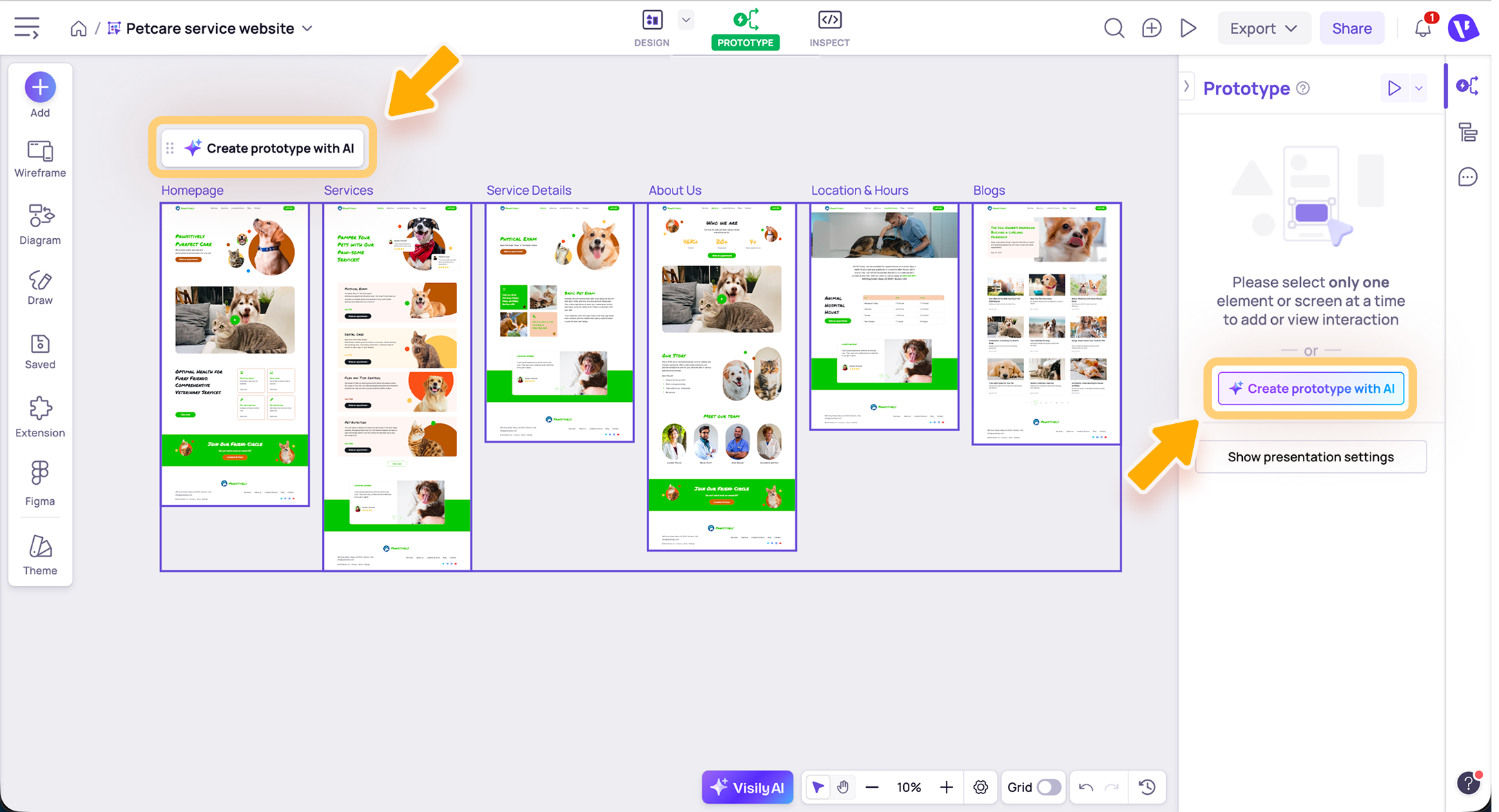

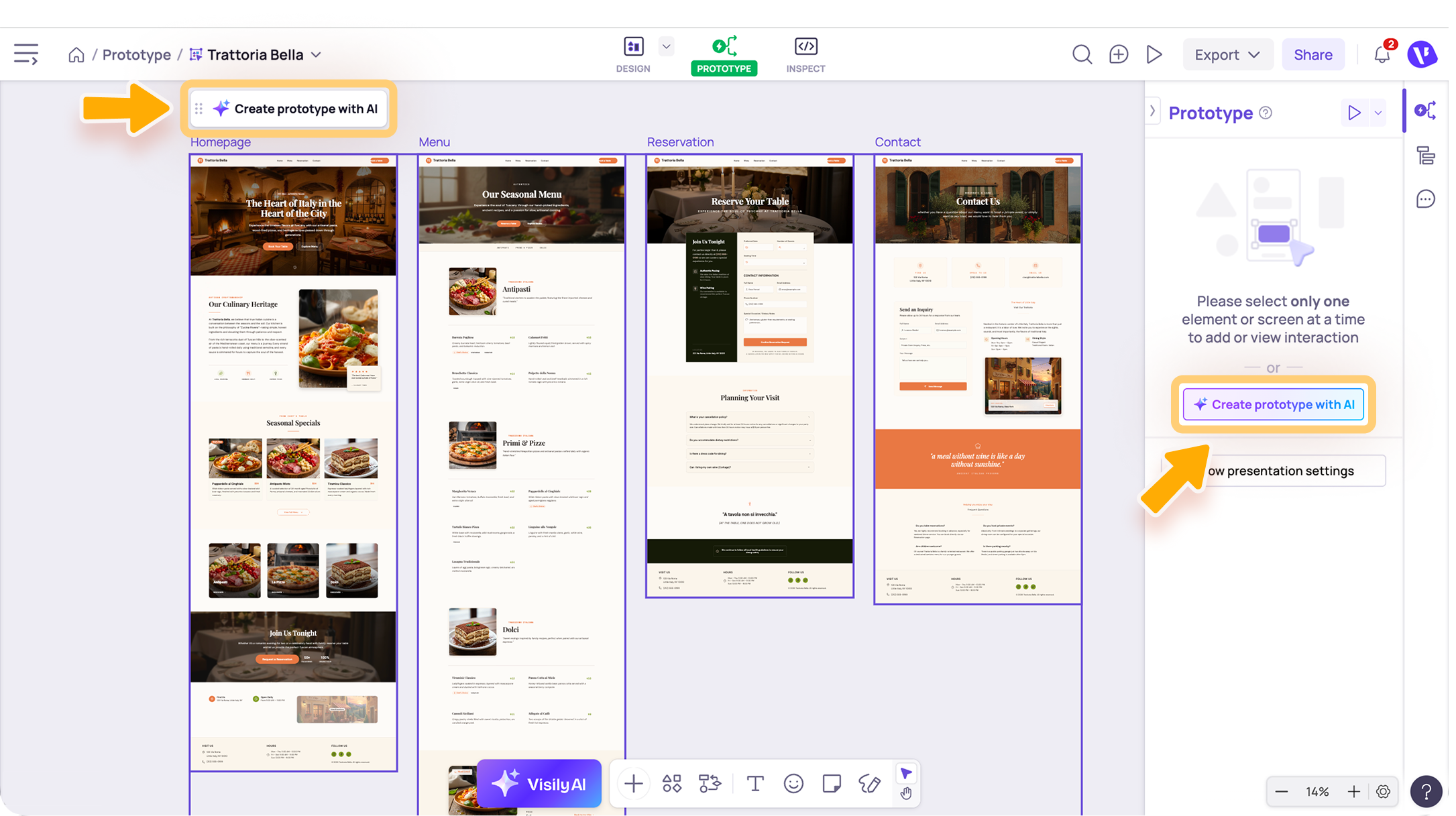

  4. Click Create prototype with AI. This button will appear above the selected screens or in the Prototype panel on the right.


  5. Wait for Visily AI to create the prototype connections.
  6. Review the generated flow using one of these options:

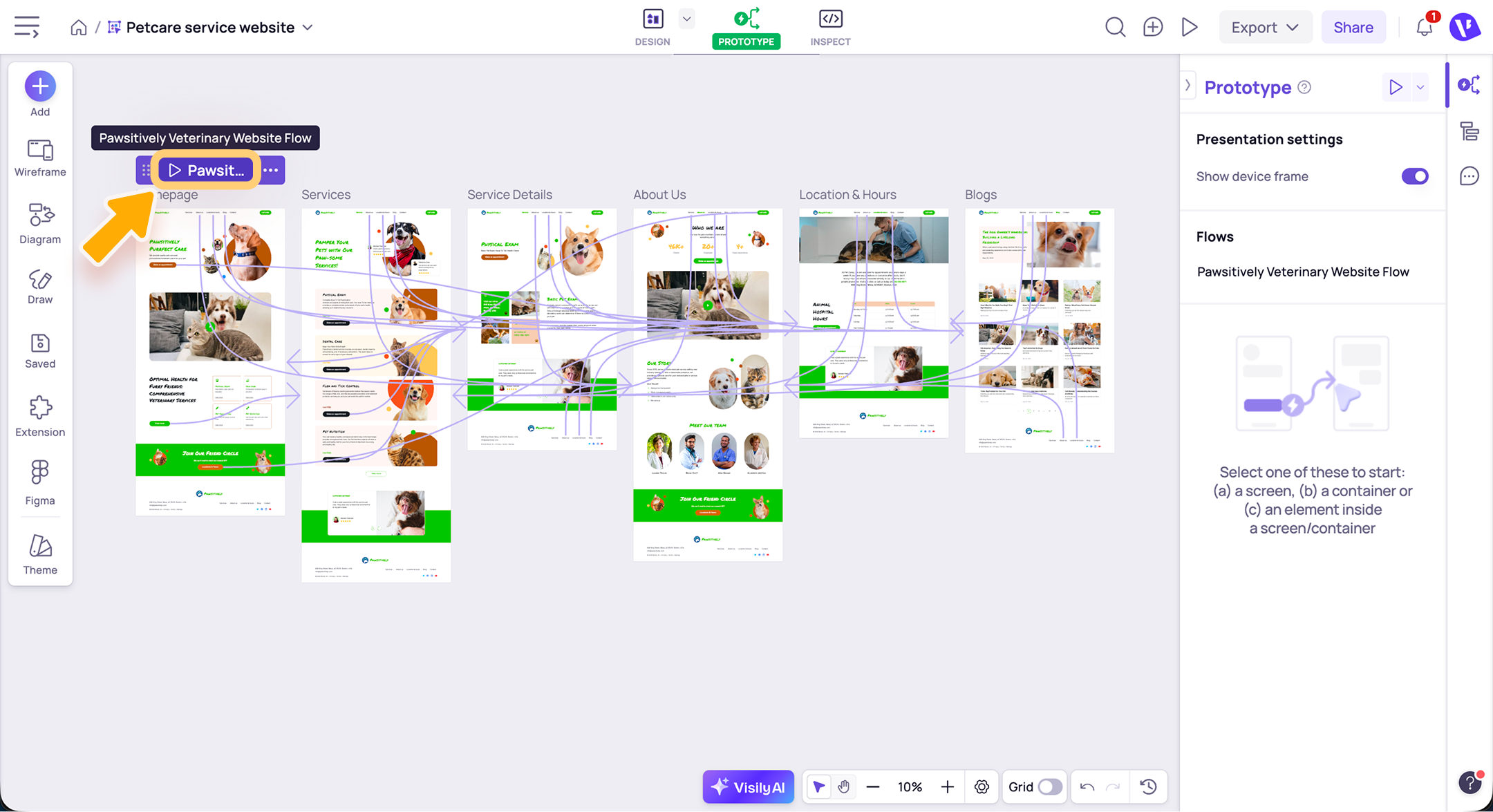

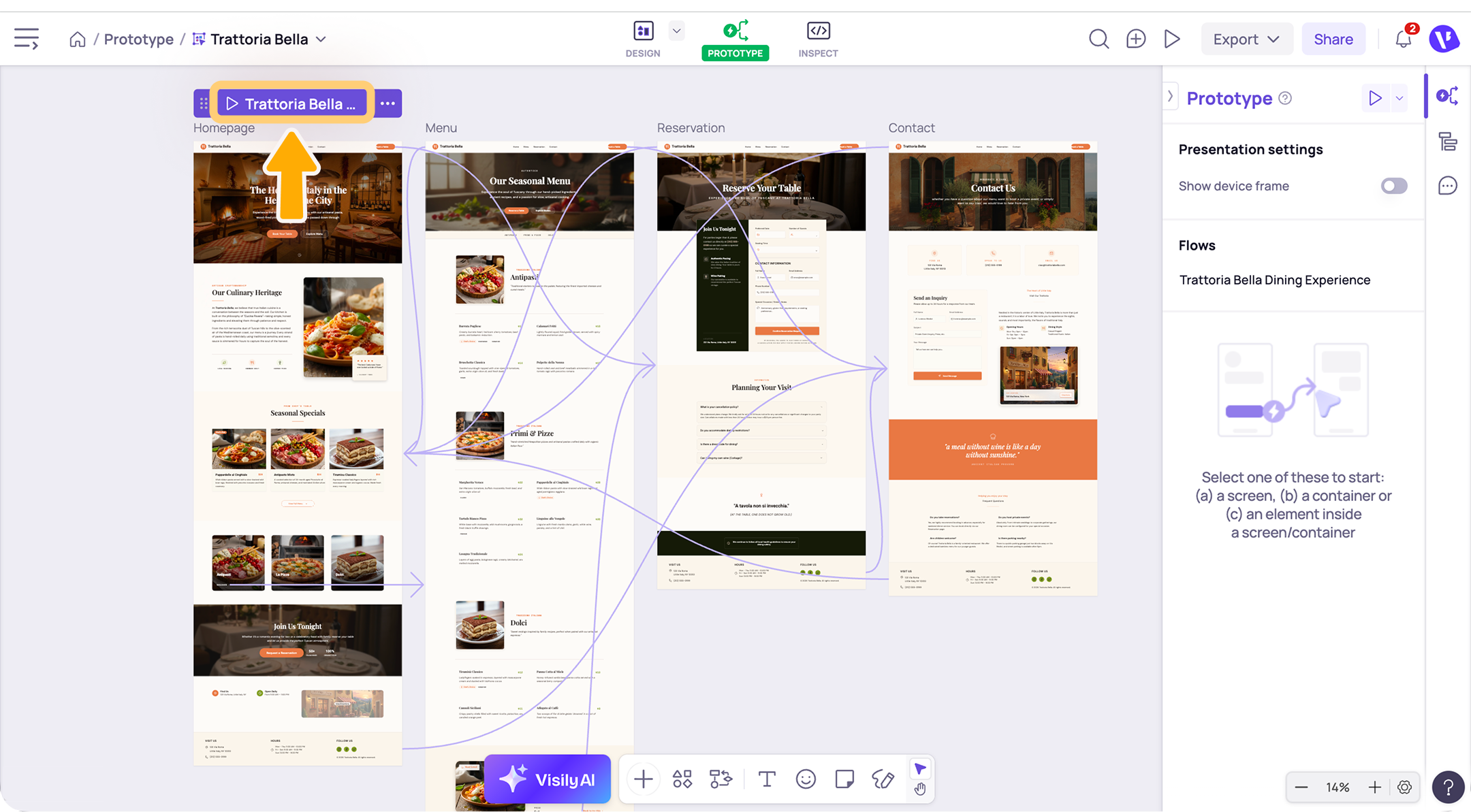

    1. Click the Play button in the Flow tab to open the presentation view in a new tab.

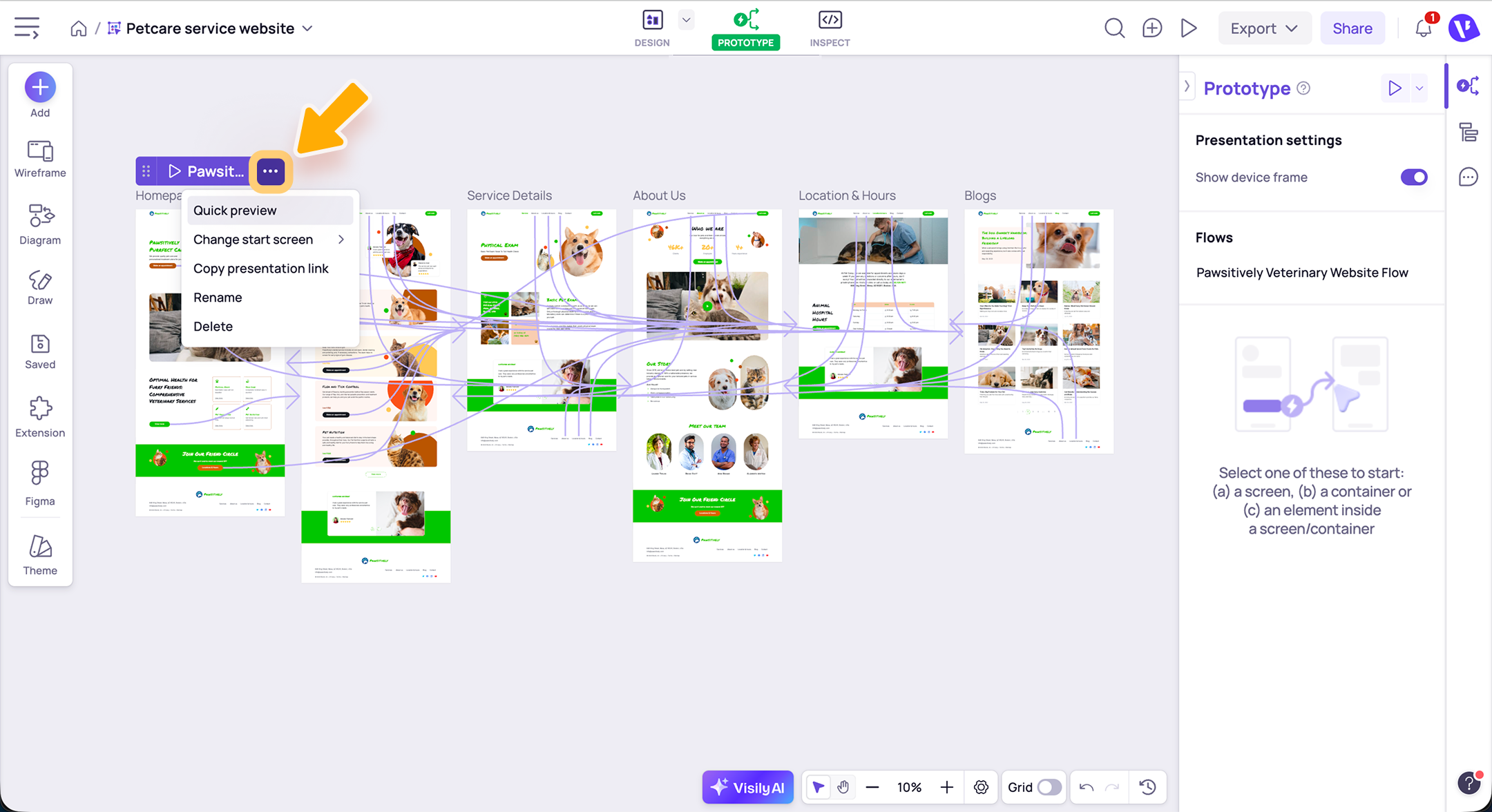

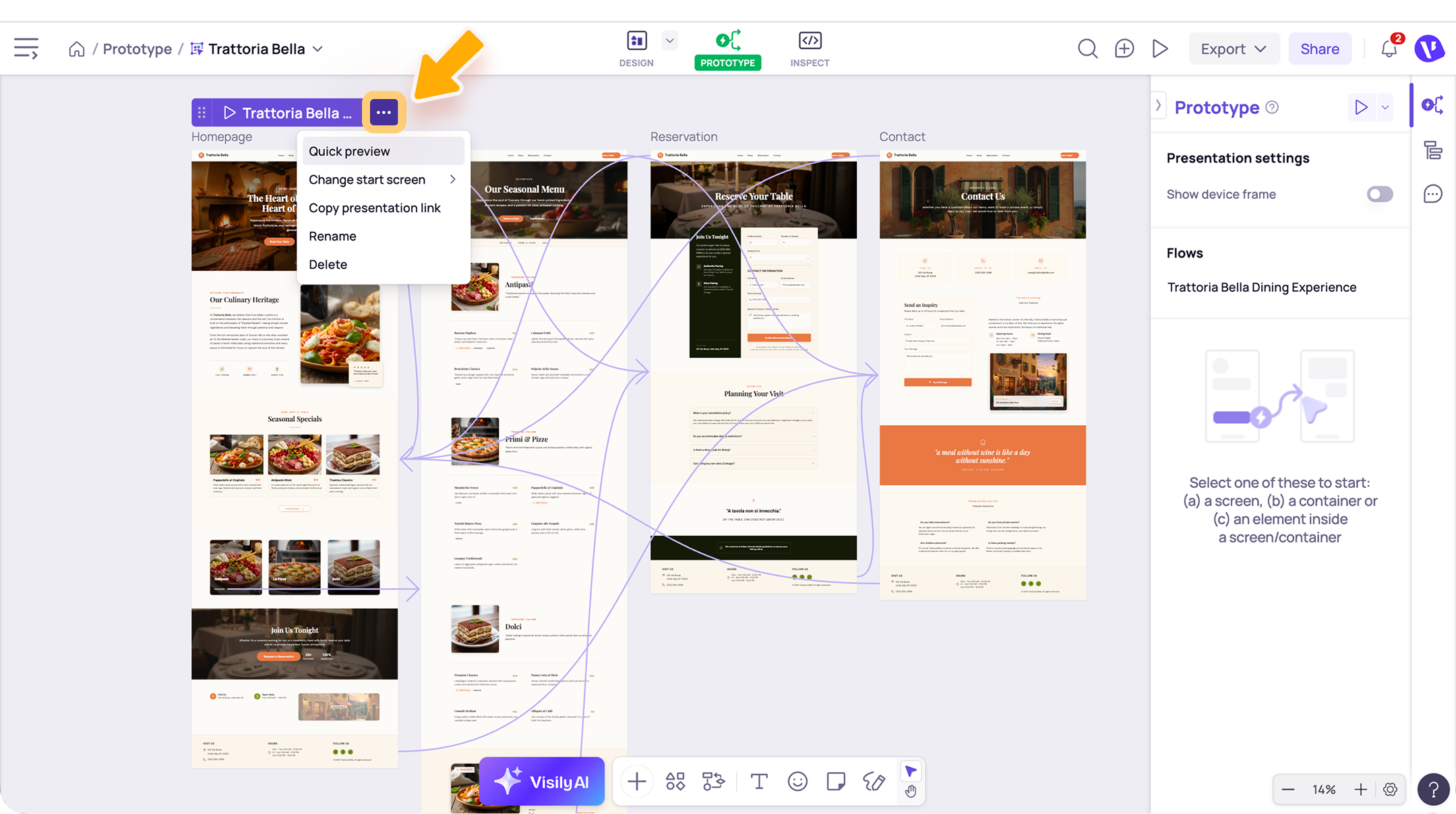

    2. In the Flow tab, click More actions and select Quick preview to open the preview dialog inside the board.

Edit the generated prototype

After the prototype is generated, you can fine-tune the connections to better match your intended user journey. You can update the interaction links, adjust the flow, or manually add more prototype interactions if needed.
For more details about interaction types and how to set them up, see the Prototype guide.

Note

  1. Running Create prototype with AI on selected screens will replace any existing prototype connections for those screens. A confirmation message will appear before Visily AI replaces existing connections.
  2. When you generate apps or flows with Visily AI Assistance, the generated screens may already include prototype connections.
  3. Create Prototype with AI can generate prototype connections for up to 20 selected screens at a time.
  4. Create prototype with AI uses AI credits and costs 10 credits/request.
Need more help?
If this does not solve your issue, contact support and include a screenshot if possible.
